Description

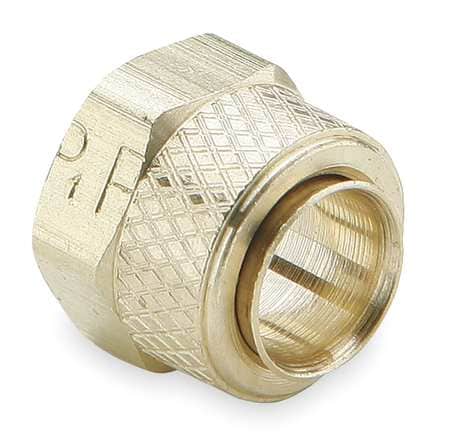

61PB-6 Parker 3/8 Poly-Tite Fittings Nut and Brass Sleeve Assembly Nut and Brass Sleeve, 3/8″ Tube Size, Metal, 9/16″ Hex Size RoHS
Parker’s Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.
A preassembled compact compression fitting. An exclusive acetal copolymer sleeve has superior resilience to resist creeping and stress caused from compression. Poly-Tite nuts will rotate around the sleeve as it tightens to prevent twisting and weakening of the plastic tubing.
Basic Pipe Fitting Material: Metal
Tube Size: 3/8″
Max. Pressure: 150 psi
Temp. Range: 0 Degrees to 150 Degrees F
Tube Fitting Material: Brass
Specific Pipe Fitting Shape: Nut and Sleeve
Pipe Fitting Connection Type: Compression
Basic Pipe Fitting Shape: Assembly
Hex Size: 9/16″
Item: Nut and Brass Sleeve
Fitting Connection Type: Compression
Country of Origin (subject to change): United States
Manufacturer:Electronic Components
Datasheet:Brass Compression Fittings for Thermoplastic and Soft Metal Tubing.pdf
