Description

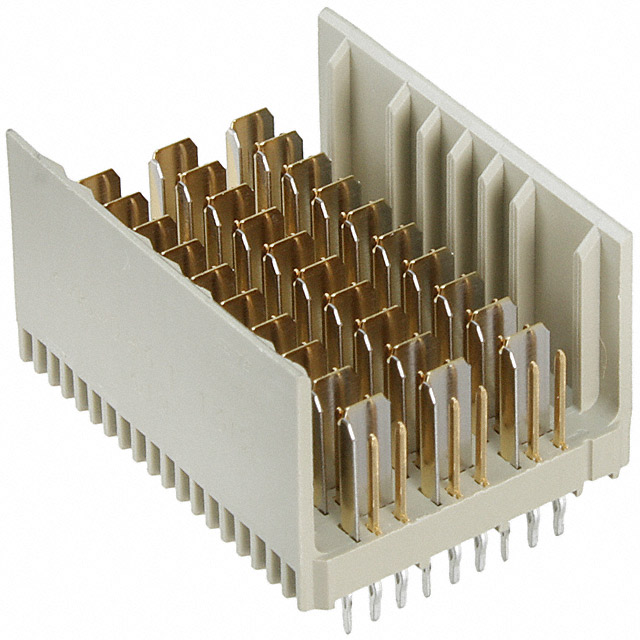

6469083-1 AMP Connector Card Edge & Backplane Connector, HM-Zd Series, Backplane, Plug, 60, 2.5 mm, Press Fit Advanced TCA HDR 60 POS 2.5mm Press Fit ST Thru-Hole^
Type Advanced TCA
^Pitch (mm) 2.5mm
^Gender HDR
^Body Orientation Straight
^Number of Contact Rows 6
^Number of Contacts 60Signal/30GroundPOS
^Termination Method Press Fit
^Mounting Style Through Hole
^Contact Plating Gold Over Nickel
^Voltage Rating Max 250VAC
^Current Rating (Max) 7/ContactA
^Operating Temp Range -65C to 105C
^Contact Material Phosphor Bronze
^Housing Material Polyester
^Product Height (mm) 13.4mm
^Product Depth (mm) 18.93mm
^Product Length (mm) 24.95mm
Manufacturer Part Number: 6469083-1
TE Connectivity
