Description

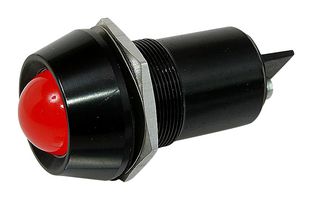

671-064-23, Marl LED Indicator, red, 448 mcd, 24-28 VAC/DC,
Specifications
LED Color: Red
Operating Voltage: 28V
Mounting Hole Dia: 25.4mm
Forward Current If: 14mA
Luminous Intensity: 448mcd
IP / NEMA Rating: IP67
Packaging: Each
Product Range: 671 Series
Light Type LED
Light colour red
Voltage max. 28 VAC/DC
Voltage 24…28 VAC/DC
Voltage min. 24 VAC/DC
Flush-mounted 25.4 mm
Current 14 mA
Series 671
Family Information
LED indicator with 25.4 mm installation diameter
Black anodised aluminium housing
Large LED indication
Available in different colours
Panel mount
Environmental information
RoHS Conform
Length 67 mm
Luminous intensity typically 448 mcd
Transmission angle 120
LED diameter 20 mm
Protection rating IP 67
Termination type Screw Connection
Mounting Panel mount
Temperature range -40…+100 C
Material Anodised aluminium
Manufacturer:MARL
Datasheet:Others/Marl-671-series.pdf
