Description

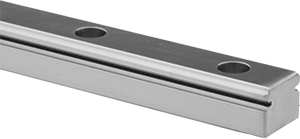

Suitable for clean room use, these carriages and guide rails are made entirely of stainless steel. Ball bearings provide accurate movement and positioning at high speeds under heavy loads. Mount in any orientation without affecting load capacity. End seals keep lubricant in and dirt out.
Rail Width 12 mm
Rail Length 150 mm
Rail Height 8 mm
Rail Material 440 Stainless Steel
For Mounting Fastener Thread Size M3
Mounting Hole Center-to-Center 25 mm
Mounting Hole Center-to-End 12.5 mm
Mounting Hole Depth 3.5 mm
Mounting Fasteners Included Yes
RoHS Compliant
Manufacturer Part Number: 6725K53-150MM
