Description

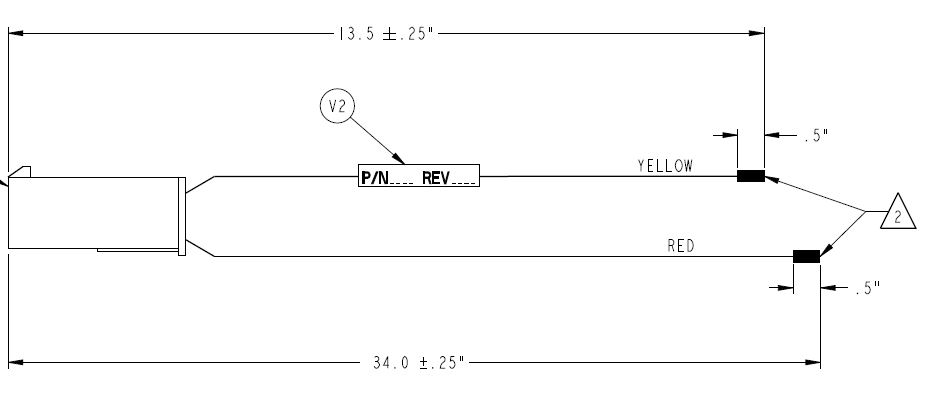

68325-02 IBS Cable Assembly 2 Position, 2-Pin to 2 Individual Wire 34″ Red, 13.5″ Yellow, 18AWG, 600V, UL 1015 1×2 Splitter Female Socket RoHS
This cable will let you turn a 2-pin cable port into 2 individual wires with high-quality 0.1″ female sockets on the end. Can also be used with any STEMMA breakouts! This one has socket pins, so it could be used to connet to wires or headers.
STRIP BACK INSULATION AND CRIMP TERMINALS TO MANUFACTURER’S
SPECIFICATIONS, UNLESS OTHERWISE SPECIFIED.
B. ACCEPTABILITY OF CABLE ASSEMBLY PER IPC-A-620 CLASS 2.
C. STANDARD MANUFACTURER’S CERTIFICATE OF COMPLIANCE MUST
ACCOMPANY EACH SHIPMENT.
D. THIS ASSEMBLY IS ROHS COMPLIANT. ALL VENDOR SUPPLIED PARTS
OR PROCESSES MUST BE ROHS COMPLIANT.
TIN ALL WIRES AND TRIM THE TIPS SHARP AT 45i$?.
3. MARK LABEL, ITEM V2, AS INDICATED. MARK WITH CURRENT REVISION.
INSTALL LABEL ON CABLE.
HOOK-UP WIRE, 18 AWG, 600V, UL 1015 USE COLOR AS STATED IN WIRE RUN LIST
Manufacturer: Electronic Components
MFG Part #: 68325-02
