Description

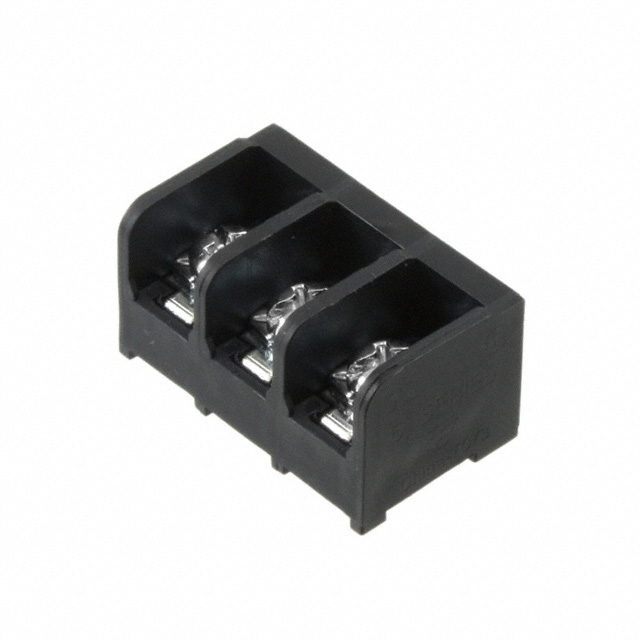

6PCV-03-006 TE Connectivity Connector 3 Circuit 0.375″ (9.53mm) Barrier Block Connector, Screws
Specifications
Manufacturer: TE Connectivity
Product Category: Barrier Terminal Blocks
RoHS
Product: Barrier Terminal Blocks
Number of Positions: 3 Position
Pitch: 9.53 mm
Current Rating: 25 A
Voltage Rating: 300 V
Wire Gauge Range: 22 AWG to 12 AWG
Type: Tri-Barrier, Open Bottom with Standoffs without Mounting Ears
Mounting Style: Through Hole
Series: #6 SERIES TRIBARRIER
Color: Black
Contact Plating: Tin
Height: 0.625 in
Housing Material: Thermoplastic
Length: 1.186 in
Mounting Angle: Vertical
Termination Style: Screw
Width: 0.7 in
Brand: TE Connectivity
Contact Material: Copper Alloy
Wire Orientation: Vertical
Lead Free Solder Processes: Wave solder capable to + 240 C
Product Type: Barrier Terminal Blocks
Factory Pack Quantity: 250
Subcategory: Terminal Blocks
Part # Aliases: 5-1437652-4
Unit Weight: 0.320005 oz
Manufacturer Part Number: 6PCV-03-006
