Description

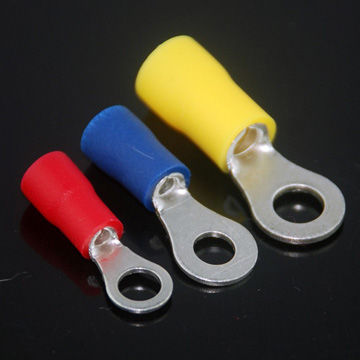

Mount these terminals on a threaded screw or stud for a more secure connection than spade and hook terminals. Use a crimper (not included) to install wire.
Application Power
Type Terminal
Terminal Type Ring
Wire Connection Type Crimp On
Shape Straight
For Wire Gauge 26-22
For Screw Size No. 2
For Screw Size Decimal Equivalent 0.09″
Ring Width 0.19″
Insulation Color Yellow
Insulation Barrel Insulated
Terminal Material Tin-Plated Copper
Maximum Temperature 220F
Maximum Voltage 600V
Insulation Material Nylon Plastic
Internal Sleeve Material Brass
RoHS RoHS 3 (2015/863/EU) compliant
Manufacturer Part Number: 7113K263
