Description

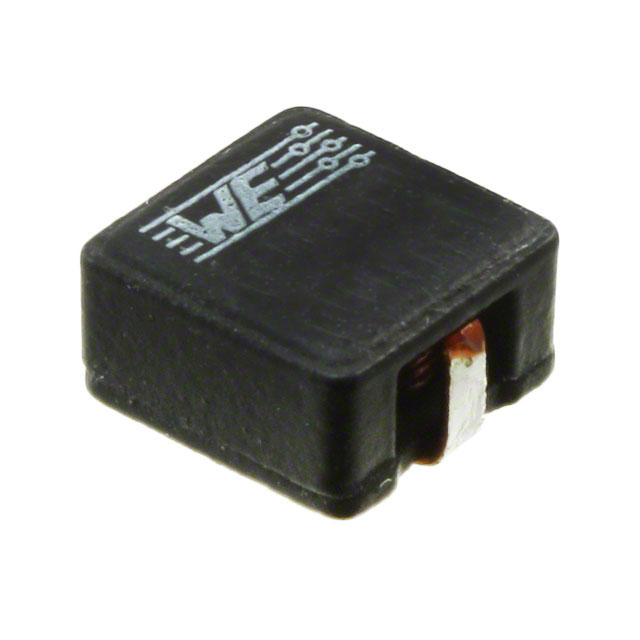

744311022 Wurth Shielded Wirewound Inductor 220 nH 20% 21A AEC-Q200 1.1mOhm 100 kHz Surface Mount 7040 Nonstandard
Inductor Type: Wirewound
Shielding: Shielded
Inductance: 220 nH
Tolerance: ±20%
Current Rating: 21A
Current – Saturation (Isat): 32A
DC Resistance (DCR): 1.1mOhm
Frequency Self Resonant: 290MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 0.276″L x 0.272″W (7.00mm x 6.90mm)
Operating Temperature: -40°C ~ 150°C
Mounting Type: Surface Mount Nonstandard 7040
Manufacturer PN: 744311022
Manufacturer: Wurth Elektronik
Datasheet: 744311022.pdf
