Description

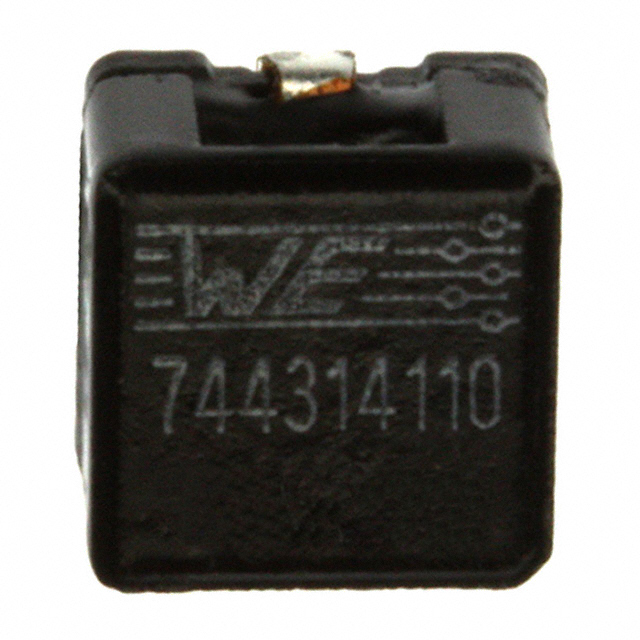

744314110 Wurth Shielded Wirewound Inductor 1.1uH 20% 15A AEC-Q200 3.15mOhm 100 kHz Surface Mount 7050 Nonstandard
Inductor Type: Wirewound
Shielding: Shielded
Inductance: 1.1uH
Tolerance: ±20%
Current Rating: 15A
Current – Saturation (Isat): 13A
DC Resistance (DCR): 3.15mOhm
Frequency Self Resonant: 135MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 0.276″L x 0.272″W (7.00mm x 6.90mm)
Operating Temperature: -40°C ~ 150°C
Mounting Type: Surface Mount Nonstandard 7050
Manufacturer PN: 744314110
Manufacturer: Wurth Elektronik
Datasheet: 744314110.pdf
