Description

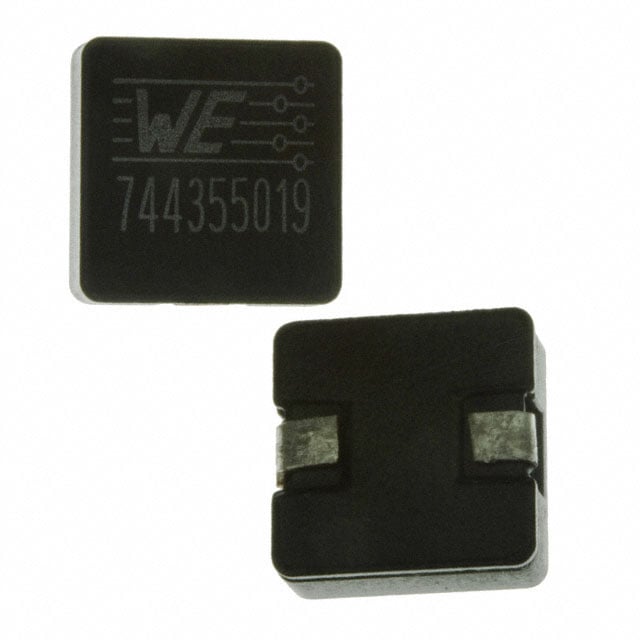

744355019 Wurth Shielded Wirewound Inductor 190 nH 20% 29A AEC-Q200 0.5mOhm 100 kHz Surface Mount 1350 Nonstandard
Inductor Type: Wirewound
Shielding: Shielded
Inductance: 190 nH
Tolerance: ±20%
Current Rating: 29A
Current – Saturation (Isat): 60A
DC Resistance (DCR): 0.5mOhm
Frequency Self Resonant: 225MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 0.512″L x 0.504″W (13.00mm x 12.80mm)
Operating Temperature: -40°C ~ 155°C
Mounting Type: Surface Mount Nonstandard 1350
Manufacturer PN: 744355019
Manufacturer: Wurth Elektronik
Datasheet: 744355019.pdf
