Description

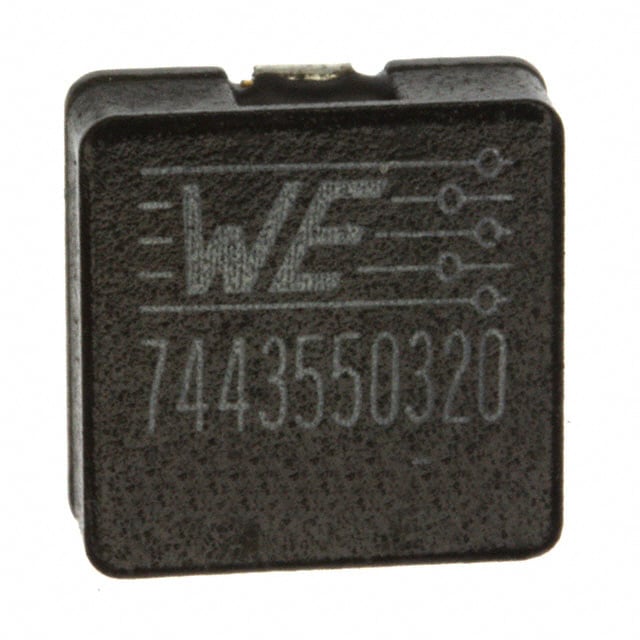

7443550320 Wurth Shielded Wirewound Inductor 3.2uH 20% 16A AEC-Q200 5.3mOhm 100 kHz Surface Mount 1350 Nonstandard
Inductor Type: Wirewound
Shielding: Shielded
Inductance: 3.2uH
Tolerance: ±20%
Current Rating: 16A
Current – Saturation (Isat): 15A
DC Resistance (DCR): 5.3mOhm
Frequency Self Resonant: 34MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 0.512″L x 0.504″W (13.00mm x 12.80mm)
Operating Temperature: -40°C ~ 155°C
Mounting Type: Surface Mount Nonstandard 1350
Manufacturer PN: 7443550320
Manufacturer: Wurth Elektronik
Datasheet: 7443550320.pdf
