Description

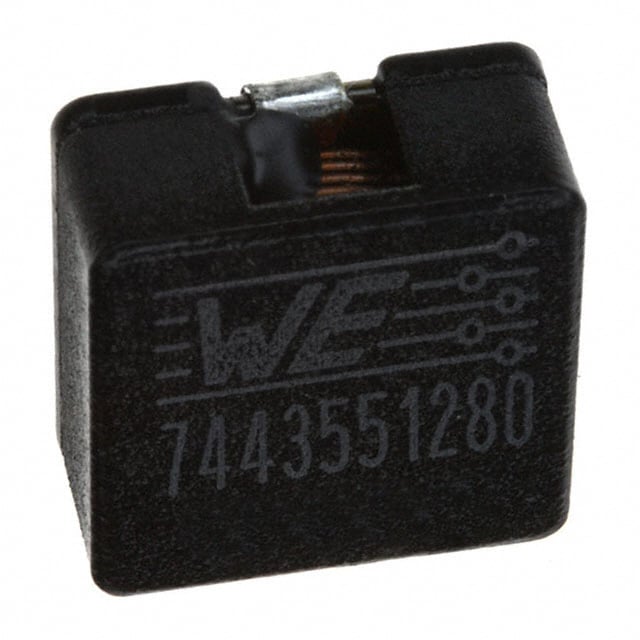

7443551280 Wurth Shielded Wirewound Inductor 2.8uH 20% 20A AEC-Q200 3.3mOhm 100 kHz Surface Mount 1365 Nonstandard
Inductor Type: Wirewound
Shielding: Shielded
Inductance: 2.8uH
Tolerance: ±20%
Current Rating: 20A
Current – Saturation (Isat): 17.5A
DC Resistance (DCR): 3.3mOhm
Frequency Self Resonant: 35MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 0.512″L x 0.504″W (13.00mm x 12.80mm)
Operating Temperature: -40°C ~ 155°C
Mounting Type: Surface Mount Nonstandard 1365
Manufacturer PN: 7443551280
Manufacturer: Wurth Elektronik
Datasheet: 7443551280.pdf
