Description

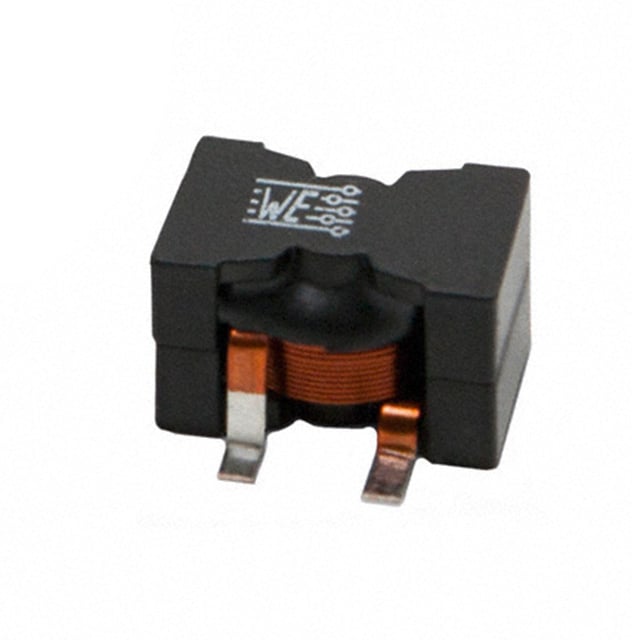

7443630070 Wurth Shielded Drum Core, Wirewound Inductor 700 nH 15% 32A AEC-Q200 0.83mOhm 100 kHz Surface Mount
Inductor Type: Drum Core, Wirewound
Shielding: Shielded
Inductance: 700 nH
Tolerance: ±15%
Current Rating: 32A
Current – Saturation (Isat): 75A
DC Resistance (DCR): 0.83mOhm
Frequency Self Resonant: 65MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 0.846″L x 0.827″W (21.50mm x 21.00mm)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount Nonstandard
Manufacturer PN: 7443630070
Manufacturer: Wurth Elektronik
Datasheet: 7443630070.pdf
