Description

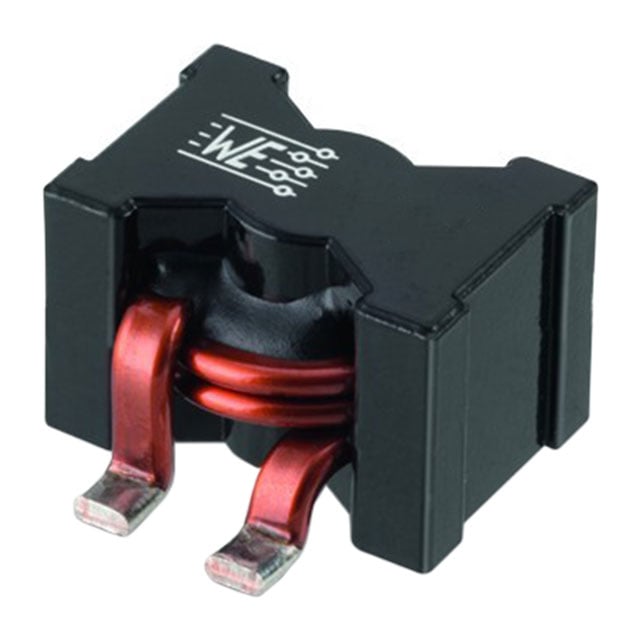

7443640100B Wurth Shielded Drum Core, Wirewound Inductor 1uH 20% 56A AEC-Q200 0.484mOhm Max 100 kHz Surface Mount
Inductor Type: Drum Core, Wirewound
Shielding: Shielded
Inductance: 1uH
Tolerance: ±20%
Current Rating: 56A
Current – Saturation (Isat): 125A
DC Resistance (DCR): 0.484mOhm Max
Frequency Self Resonant: 53.6MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 1.102″L x 0.764″W (28.00mm x 19.40mm)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount Nonstandard
Manufacturer PN: 7443640100B
Manufacturer: Wurth Elektronik
Datasheet: 7443640100B.pdf
