Description

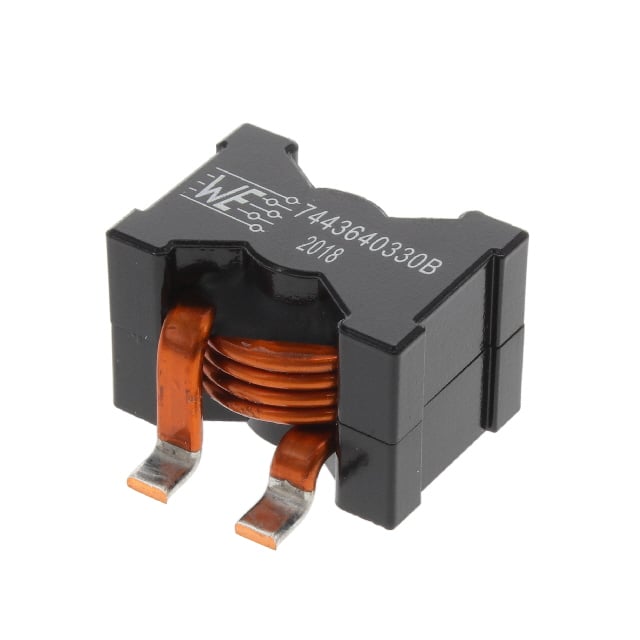

7443640330B Wurth Shielded Drum Core, Wirewound Inductor 3.3uH 20% 47.5A AEC-Q200 0.968mOhm Max 100 kHz Surface Mount
Inductor Type: Drum Core, Wirewound
Shielding: Shielded
Inductance: 3.3uH
Tolerance: ±20%
Current Rating: 47.5A
Current – Saturation (Isat): 70A
DC Resistance (DCR): 0.968mOhm Max
Frequency Self Resonant: 28.2MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 1.102″L x 0.764″W (28.00mm x 19.40mm)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount Nonstandard
Manufacturer PN: 7443640330B
Manufacturer: Wurth Elektronik
Datasheet: 7443640330B.pdf
