Description

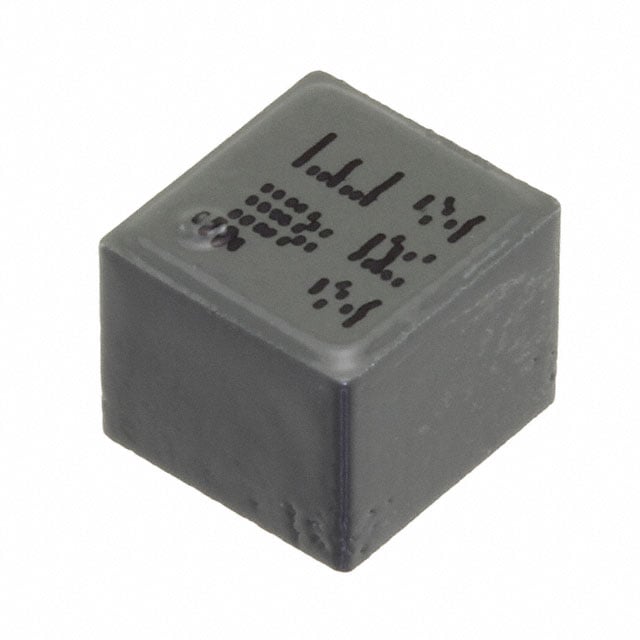

74439358022 Wurth Shielded Drum Core, Wirewound Inductor 2.2uH 20% 13A AEC-Q200 3.7mOhm 100 kHz Surface Mount 8080 Nonstandard
Inductor Type: Drum Core, Wirewound
Shielding: Shielded
Inductance: 2.2uH
Tolerance: ±20%
Current Rating: 13A
Current – Saturation (Isat): 26.45A
DC Resistance (DCR): 3.7mOhm
Frequency Self Resonant: 40MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 0.346″L x 0.327″W (8.80mm x 8.30mm)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount Nonstandard 8080
Manufacturer PN: 74439358022
Manufacturer: Wurth Elektronik
Datasheet: 74439358022.pdf
