Description

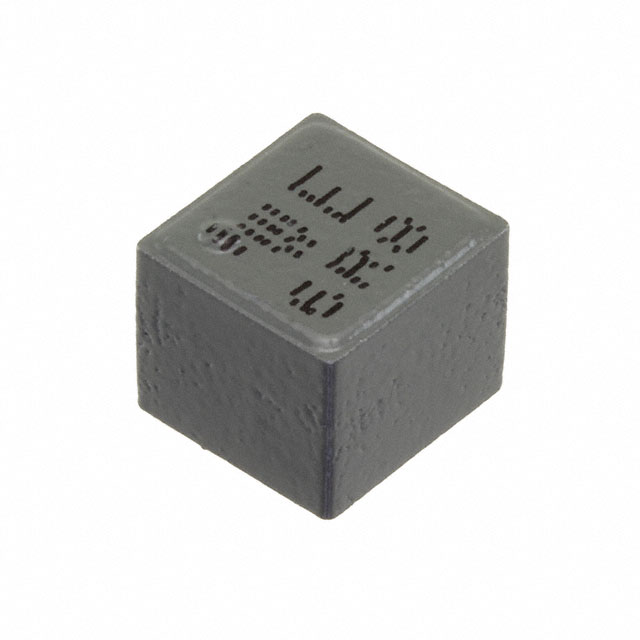

74439358068 Wurth Shielded Drum Core, Wirewound Inductor 6.8uH 20% 7.2A AEC-Q200 13.5mOhm 100 kHz Surface Mount 8080 Nonstandard
Inductor Type: Drum Core, Wirewound
Shielding: Shielded
Inductance: 6.8uH
Tolerance: ±20%
Current Rating: 7.2A
Current – Saturation (Isat): 17.6A
DC Resistance (DCR): 13.5mOhm
Frequency Self Resonant: 20MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 0.346″L x 0.327″W (8.80mm x 8.30mm)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount Nonstandard 8080
Manufacturer PN: 74439358068
Manufacturer: Wurth Elektronik
Datasheet: 74439358068.pdf
