Description

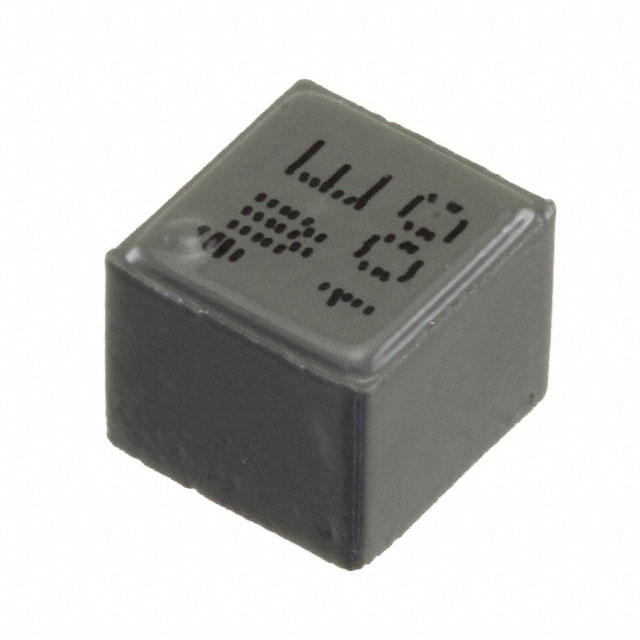

74439358100 Wurth Shielded Drum Core, Wirewound Inductor 10uH 20% 5.8A AEC-Q200 20mOhm 100 kHz Surface Mount 8080 Nonstandard
Inductor Type: Drum Core, Wirewound
Shielding: Shielded
Inductance: 10uH
Tolerance: ±20%
Current Rating: 5.8A
Current – Saturation (Isat): 13.5A
DC Resistance (DCR): 20mOhm
Frequency Self Resonant: 17MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 0.346″L x 0.327″W (8.80mm x 8.30mm)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount Nonstandard 8080
Manufacturer PN: 74439358100
Manufacturer: Wurth Elektronik
Datasheet: 74439358100.pdf
