Description

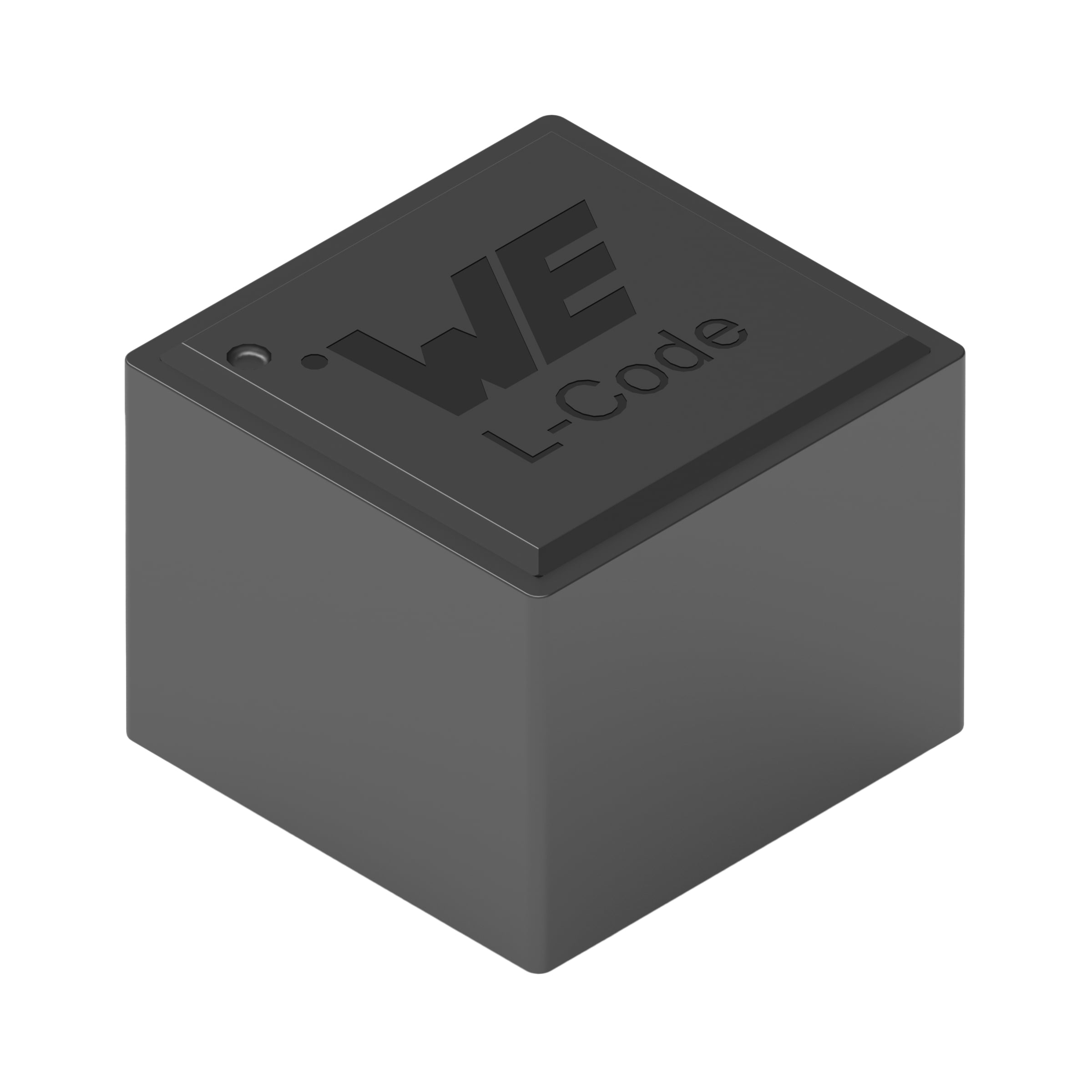

7443936050022 Wurth Shielded Molded Inductor 220 nH 20% 96.6A AEC-Q200 0.5mOhm Max 100 kHz Surface Mount
Inductor Type: Molded
Shielding: Shielded
Inductance: 220 nH
Tolerance: ±20%
Current Rating: 96.6A
Current – Saturation (Isat): 114A
DC Resistance (DCR): 0.5mOhm Max
Frequency Self Resonant: 115MHz
Inductance Frequency – Test: 100 kHz
Size / Dimension: 0.445″L x 0.394″W (11.30mm x 10.00mm)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount Nonstandard
Manufacturer PN: 7443936050022
Manufacturer: Wurth Elektronik
Datasheet: 7443936050022.pdf
