Description

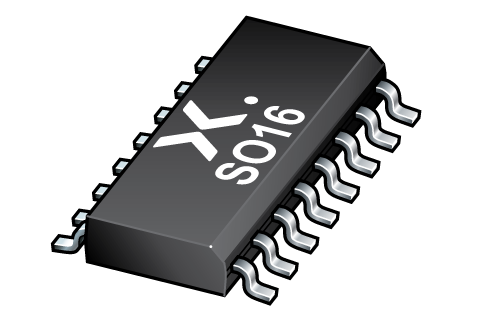

74LV165D,112 Nexperia NXP Shift Register Single 8-Bit Serial/Parallel to Serial 3.3V 16-Pin SOIC T/R RoHS
Specifications
Manufacturer: Nexperia
Product Category: Counter Shift Registers
Counting Sequence: Serial/Parallel to Serial
Number of Circuits: 1
Number of Bits: 8 bit
Package / Case: SO-16
Logic Family: LV
Logic Type: CMOS
Number of Input Lines: 9
Propagation Delay Time: 18 ns
Supply Voltage – Min: 1 V
Supply Voltage – Max: 5.5 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Packaging: Tube
Function: Shift Register
Width: 4 mm
Brand: Nexperia
Mounting Style: SMD/SMT
Number of Output Lines: 1
Product Type: Counter Shift Registers
Factory Pack Quantity: 50
Subcategory: Logic ICs
Part # Aliases: 935156060112
Unit Weight: 0.008818 oz
The 74LV165 is an 8-bit parallel-load or serial-in shift register with complementary serial outputs (Q7 and Q7) available from the last stage. When the parallel-load input (PL) is LOW, parallel data from the inputs D0 to D7 are loaded into the register asynchronously.
Manufacturer: NXP
MFG Part #: 74LV165D,112
