Description

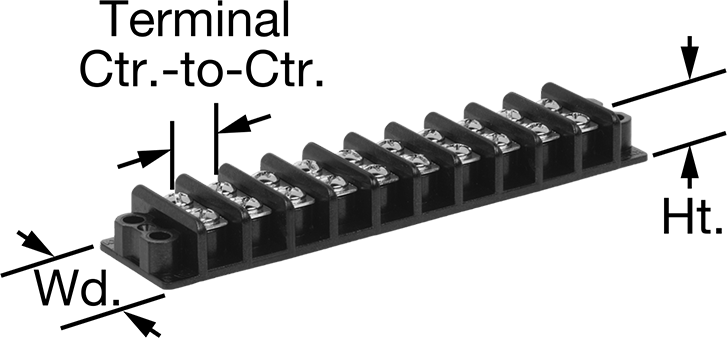

7527K51 Terminal Block Mount blocks to a panel or the surface of a machine. Also known as barrier terminal strips 300V AC/300V DC , Ten 20A Circuits, 3/8″ Center-to-Center RoHS
Number of Circuits: 10
Voltage: 300V AC/300V DC
Current Per Circuit: 20 A
For Wire Gauge: 22-12
Wire Connection Type: Screw Terminals
Terminal Size: No. 6
Length : 4 7/16″
Width : 7/8″
Height : 1/2″
Color: Black
Min. Temperature: Not Rated
Maximum Temperature: 257 F
Mounting Location: Surface
Mounting Fasteners Included: No
Mounting Holes:
Diameter : 0.17″
Number of: 4
Center-to-Center Length : 4.13″
Center-to-Center Width : 0.31″
Specifications Met: UL Recognized Component, CSA Certified, CE Marked
RoHS: RoHS 3 (2015/863/EU) Compliant
Manufacturer: Electronic Components
MFG Part #: 7527K51
