Description

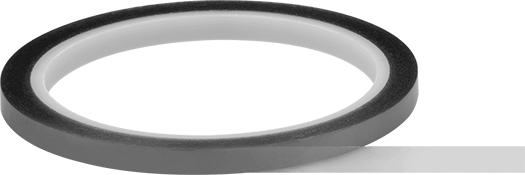

7648A36 Masking Tape for Electronics, Silicone, Kapton Polyimide, 1/4″ Wide,.0025″ Thickness, 108′ Long RoHS
Tape Type: Electrical, Masking
Form: Roll
Construction: Film
Width : 1/4″
Length: 108 ft.
Overall Thickness : 0.0025″
Material Thickness: 0.001″
Adhesive Thickness: 0.0015″
Material: KaptonPolyimide Plastic
Adhesive Location: One Side
Adhesive Type: Silicone
Temperature Range: -40 to 500 F
Application Temperature Range: 55 to 95 F
Voltage Rating: 6,500V
Dielectric Strength: Not Rated
Roll Diameter: 4″
Spool ID: 3″
Spool Material: Plastic
Tensile Strength: 30 lbs./in. width
Adhesion to Steel: 25 oz./in. width
Electrical Properties: Electrical Insulating
Liner Type: No Liner
Specifications Met: UL 510
Color: Amber
Manufacturer: Electronic Components
MFG Part #: 7648A36
