Description

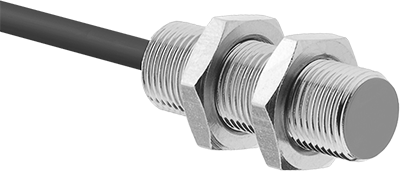

7674K811 Also known as inductive proximity switches, these detect metallic objects even if theyre obscured by water, oil, dirt, or a surface finish. Sensing distance is based on the target material. The distance listed is for mild steel. Theyre often used with programmable logic controllers (PLCs) and produce PNP or NPN signal output. To determine the signal output of a switch you are replacing, use Testers for Proximity and Photoelectric Switches (not included).
Switch Type: Noncontact
Sensor Type: Inductive
Switch Starting Position: 1 Off (Normally Open)
Diameter: 8 mm
Maximum Sensing Distance: 1.5 mm
Mounting Style: Flush
Signal Output Type: NPN
Input Voltage: 10V DC-30V DC
Current Output: 100mA
Electrical Connection Type: Hardwire
Wire Connection Type: Wire Leads
Number of Wire Leads: 3
Length: 30 mm
Housing Material: Nickel-Plated Brass
Face Material: Plastic
Circuit Protection: Overload
Reverse Polarity
Short Circuit
Mounting Thread Size: M8
Mounting Thread Pitch: 1 mm
Mounting Thread Type: Metric
Wire Lead Gauge : 26
Wire Lead Color: Black, Blue, Brown
Cable Lead Length: 6 1/2 ft.
Cable OD: 0.14″
Cable Color: Gray
Cable Outer Insulation Material: PVC Plastic
Temperature Range: -10 to 155 F
Environment: Temporary Submersion
Environmental Rating: IP67
click to learn more about IP67
Specifications Met: UL Listed, CE Marked
Manufacturer: Electronic Components
MFG Part #: 7674K811
