Description

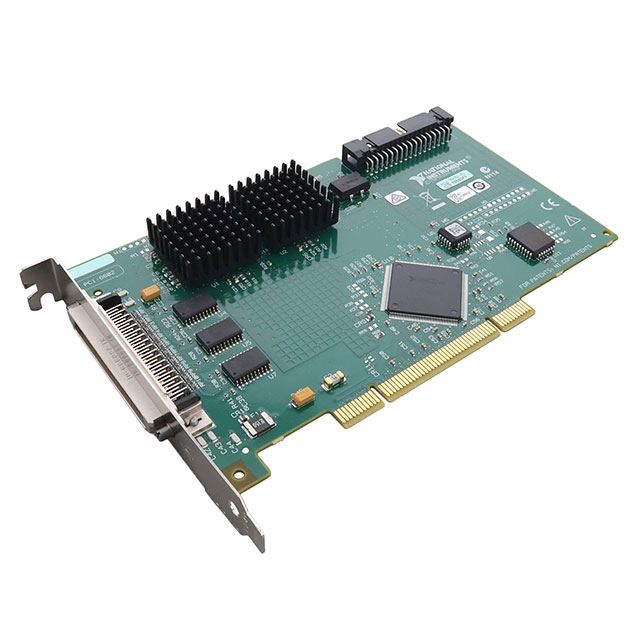

777531-01 National Instruments (NI) Counter/Timer PCI 32 Digital DAQ Device Output:32 Digital SCSI
Function: Counter/Timer
The NI PCI 6602 (777531-01) performs encoder position measurements, event counting, period measurement, pulse-width measurement, pulse generation, pulse-train generation, and frequency measurement. It features eight counter/timers, digital debouncing filters, and TTL/CMOS-compatible digital I/O. The PCI 6602 can perform three simultaneous high-speed DMA transfers.
National Instruments part number 777531-01 is an identifying part number for the PCI-6602, a Counter/Timer Device with 8 Counters/Timers, 32 Digital Inputs/Outputs and 5 Volts Maximum Input Voltage. The NI 777531-01 is designed for tasks such as encoder position measurements, event counting, period measurement, pulse-width measurement, pulse generation, pulse-train generation, and frequency measurement. It includes eight counter/timers, digital debouncing filters, and TTL/CMOS-compatible digital I/O.
Additionally, this device supports three simultaneous high-speed DMA transfers, making it suitable for a variety of high-performance applications. This device features pad synchronization, which is beneficial when multiple counters are measuring or operating from the same external signal. For example, suppose counters 0 and 1 are configured for triggered pulse generation, both using the same external trigger (connected to PFI 38 on the I/O connector with PFI 38 selected as their GATE). As the trigger signal propagates through the I/O pad, the time it takes to reach the GATE of each counter within the ASIC may differ by a few nanoseconds.
Users can use pad synchronization to ensure the counters detect changes in the signal simultaneously. During pad synchronization, the signal is offset by one clock cycle, aligning the counters’ operations precisely. This device offers several key features, including debouncing/glitch removal, buffered operations, and pulse generation. However, it does not support GPS synchronization. The part number 777531-01 from National Instruments is capable of being calibrated. The calibration process, known as time-based calibration, ensures that time and frequency measurements are precise and accurate.
