Description

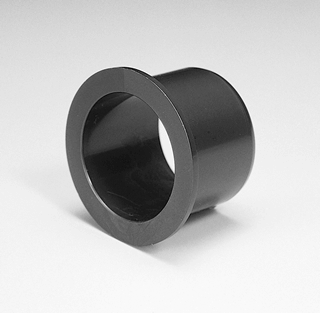

Oiles #80 is a proprietary blend of polyacetal resins and uniformly dispersed bearing lubricants. There are several derivatives of this material, each specifically formulated to satisfy a wide variety of application requirements. Oiles #80 is available in both flanged straight bore bushing and thrust washer styles in standard metric sizes. Rod stock, tube stock, and flat plate material is also available for local machining. Designed to provide superior service in applications where no lubrication is possible and where economical, high load light weight performance is desirable. Oiles #80 is an alternative to applications where sintered bronze and specialty plastics are being used as a bearing medium. For temperature requirements exceeding the limits of Oiles #80, please refer to Oiles 500, 300 and LF series bearings.
Specifications
Product Category
Plain Bearings and Sleeve Bearings
Bushing Type
Flanged
Design Units
Metric
Bearing ID
0.3173 to 0.3197 inch (8.06 to 8.12 mm)
Bearing OD
0.3955 to 0.3999 inch (10.05 to 10.16 mm)
Length
0.295 to 0.315 inch (7.50 to 8.00 mm)
Bore Diameter: 8 mm
Outside Diameter: 10 mm
Overall Length: 8 mm
Flange Diameter: 15 mm
Sleeve Bearing Type: Flanged Bearing
Bearing Material: Polyacetal
Flange Width: 1 mm
Operating Temperature Range: -40 to 176 F
Maximum PV Value: 2.45 N/mm – m/s
Maximum P Value: 17.5 N/mm
Maximum V Value: 0.85 m/s SFPM
Material Specification: 80
Standards Met: RoHS
Series: 80F
Additional Details: Lead Free
OVERVIEW
Serviceable without the need for lubrication
Has superior load resistance and wear resistance
Features low coefficient of friction and superior speed characteristics
Prevents stick slips and squeak notices
Injection-molded and can be made in complicated shapes
Good mass productivity
Manufacturer:Electronic Components
Datasheet:oiles-bearing-all.pdf
