Description

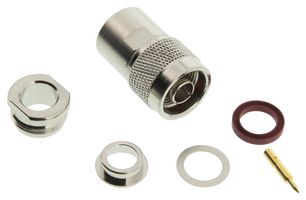

82-202-RFX Amphenol RF / Coaxial Connector N-Type Straight Clamp Plug for RG-8, 50 Ohm
Specifications
Manufacturer: Amphenol
Product Category: RF Connectors / Coaxial Connectors
RoHS
Product: Connectors
RF Series: N
Gender: Plug
Impedance: 50 Ohms
Maximum Frequency: 11 GHz
Termination Style: Cable – Clamp
Orientation: Straight
Mounting Type: –
Cable Type: RG-8, RG-9, RG-213, RG-225
Packaging: Bulk
Body Material: Brass
Body Style: Straight
Contact Plating: Gold
Contact Termination: Crimp
Isolation: Non-Isolated
Series: Type N
Voltage Rating: 1.5 kV
Brand: Amphenol RF
Contact Material: Brass
Body Finish: Nickel
Coupling Mechanism: Threaded
Mating Cycles: 500
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: – 65 C
Product Type: RF Connectors / Coaxial Connectors
Factory Pack Quantity: 1
Subcategory: RF Interconnects
Part # Aliases: 82-202-RFX N1141A2-004-NT3G-50
Unit Weight: 1.833541 oz
The 82-202-RFX is a RF Connector, N-type series, N-type straight Clamp Plug with gold-plated brass contact and crimp contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. N-type connector is designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11GHz. N-type connector feature threaded coupling mechanisms and is fully interchangeable with N-type connector made to the MIL-C-39012 specification. This connector is used in all systems where excellent RF and mechanical performance is critical. This RF connector is designed for RG-213, RG-214, RG-225, RG-302, RG-393 and RG-8 cable.
Manufacturer Part Number: 82-202-RFX
Amphenol
