Description

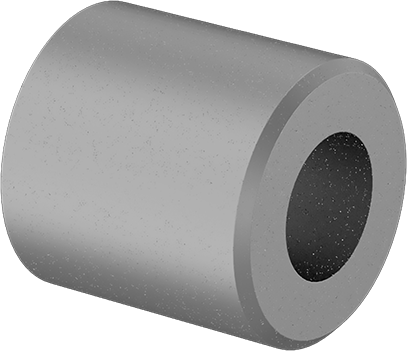

8491A038 Mount flush with jig plates for precise drilling, these bushings can also be used as spacers, shims, and machinery bushings 0.1285″ ID 1/4″ OD 1/4″ Long
Installation Type: Permanent
Drill Bushing Style: Smooth
ID: 0.1285″
OD: 1/4″
Length : 1/4″
For Drill Bit Size: No. 30
For Drill Bit Size Decimal Equivalent: 0.1285″
Tolerance:
ID: 0.0001″ to 0.0004″
OD: 0.0013″ to 0.0016″
Length : -0.015″ to 0.015″
Drill Bushing Type: P
Material: Steel
Hardness: Rockwell C61
RoHS: RoHS 3 (2015/863/EU) Compliant
Manufacturer: Electronic Components
MFG Part #: 8491A038
