Description

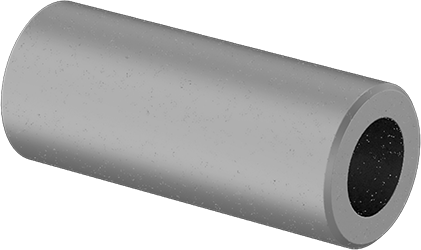

8491A117Mount flush with jig plates for precise drilling. These bushings can also be used as spacers, shims, and machinery bushings 0.1875″ ID 5/16″ OD 3/4″ Long RoHS
Installation Type: Permanent
Drill Bushing Style: Smooth
ID: 0.1875″
OD: 5/16″
Length : 3/4″
For Drill Bit Size: 3/16″
For Drill Bit Size Decimal Equivalent: 0.1875″
Tolerance:
ID: 0.0001″ to 0.0004″
OD: 0.0013″ to 0.0016″
Length : -0.015″ to 0.015″
Drill Bushing Type: P
Material: Steel
Hardness: Rockwell C61
RoHS: RoHS 3 (2015/863/EU) Compliant
Manufacturer: Electronic Components
MFG Part #: 8491A117
