Description

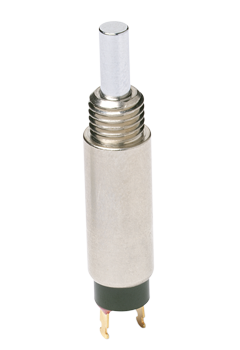

8732S1HZBE C&K Pushbutton Switch, Momentary Spring Return, SPST, 120 V, 28 V, Solder
Designers in the medical test equipment and telecommunications industries turn to C&Ks 8700 series of overtravel pushbutton switches when engineering their latest product applications. With a long electrical lifecycle of 100k cycles, a heavy-duty brass plunger and extended pre-travel or overtravel options, the 8700 series give designers the highly-responsive, long-lasting switches they need to succeed.
Specifications
Manufacturer: C&K Switches
Product Category: Pushbutton Switches
RoHS
Illuminated: Non-Illuminated
Contact Form: SPST
Switch Function: OFF – (ON)
Voltage Rating AC: 20 VAC
Voltage Rating DC: 20 VDC
Power Rating: 400 mVA
Mounting Style: Panel
Termination Style: Solder Lug
Contact Plating: Gold
Actuator: Without Cap
Series: 8700
Features: Button/cap ordered separately
Terminal Seal: Epoxy
Brand: C&K
Flammability Rating: UL 94 V-0
Actuator Style: Without Cap
Product Type: Pushbutton Switches
Factory Pack Quantity: 1
Subcategory: Switches
Unit Weight: 0.272809 oz
Manufacturer Part Number: 8732S1HZBE
