Description

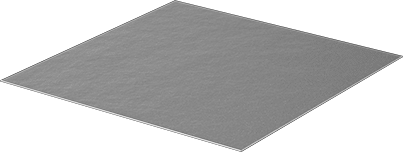

88885K64 Highly Corrosion-Resistant 316 Stainless Steel Sheet, 36″ x 48″, 0.048″ Thick RoHS
Material 316 Stainless Steel
Cross Section Shape Rectangle
Construction Solid
Appearance Plain
Thickness 0.048″
Thickness Tolerance -0.005″ to 0.005″
Tolerance Rating Standard
Width 36″
Width Tolerance -1/8″ to 1/8″
Length 48″
Length Tolerance -1/8″ to 1/8″
Yield Strength 30,000 psi
Fabrication Cold Worked
Hardness Rockwell B95 (Medium)
Temper Rating Softened (Annealed)
Heat Treatable No
Min. Temperature Not Rated
Maximum Temperature 1500 F
Specifications Met ASTM A240, MIL-S-5059
Flatness Tolerance Not Rated
Density 0.29 lbs./cu. in.
Surface Resistivity 449 ohm-cir. mil/ft.
Melting Point Temperature 2500 F
Modulus of Elasticity 28 ksi 103
Thermal Conductivity 110 Btu/hr. in./sq. ft./F @ 212 F
Elongation 39%
Manufacturer Part Number: 88885K64
