Description

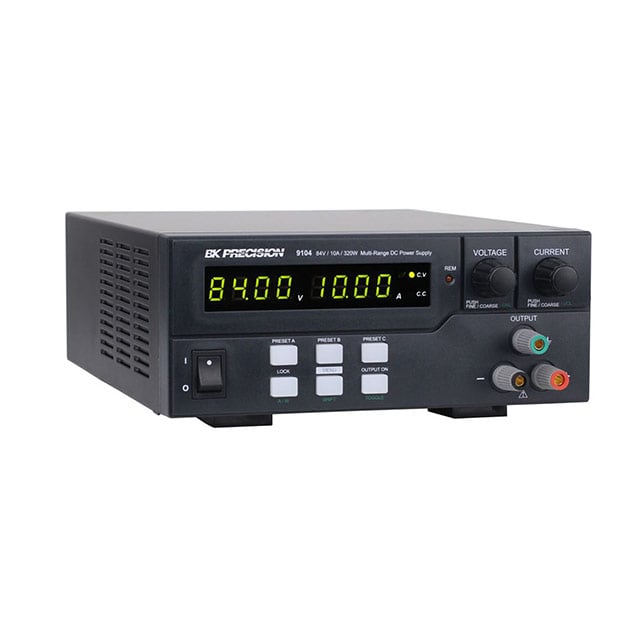

9104 B&K Precision Power Supply Bench (AC to DC) 90 ~ 264VAC 320WLED 0 ~ 84VDC 0 ~ 10A Constant Current and Constant Voltage Indicators, USB Interface. B&K model 9104 multi-range power supply can replace several power supplies on your bench by offering extended operating areas. Unlike conventional supplies with fixed output ratings, this power supply automatically recalculates voltage and current limits for each setting, providing 320 W output power in any voltage/ current setting within its rated voltage and current limits.
The BK Precision 9104 Programmable Multi-Range DC Power Supply automatically recalculates voltage and current limits for each setting, providing 320 W output power in any voltage/current setting within the supply’s limits. It features auto cross-over for constant voltage and constant current operation, 3 voltage/current presets for frequently-used settings and transient operation, and versatile remote control modes.
Output Voltage: 0-84V DC
Output Current: 0-10A
Input Voltage: 90 – 264VAC, 45 – 65 Hz
Automatic CV/CC crossover operation
Remote sense terminal for voltage drop compensation
Save up to 3 user-defined voltage and current presets for quick recall
Transient mode for generating square, triangular or trapezium waveforms
Output on-off switch and control panel lock button for safer operation
Analog remote control function and USB interface
PC software for remote control and external timed programming
Overvoltage and overcurrent protection
Thermostatically controlled cooling fan
Applications:
Production testing
Telecommunications
R&D
Service
University labs
Specs
Manufacturer: B&K Precision
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Input Voltage: 90 VAC to 264 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 84 VDC
Output Current-Channel 1: 0 A to 10 A
Output Power: 320 W
Display Type: LED, Dual 4 Digit
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 90 mm
Length: 250 mm
Product Type: Bench Top Power Supplies
Series: 9104
Subcategory: Power Supplies
Width: 200 mm
Unit Weight: 5.512 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 84VDC
Current Output: 0 ~ 10A
Size / Dimension: 10.000″ L x 7.900″ W x 3.600″ H (254mm x 200.66mm x 91.44mm)
Manufacturer: B&K Precision
Datasheet: 9103_9104_datasheet.pdf
