Description

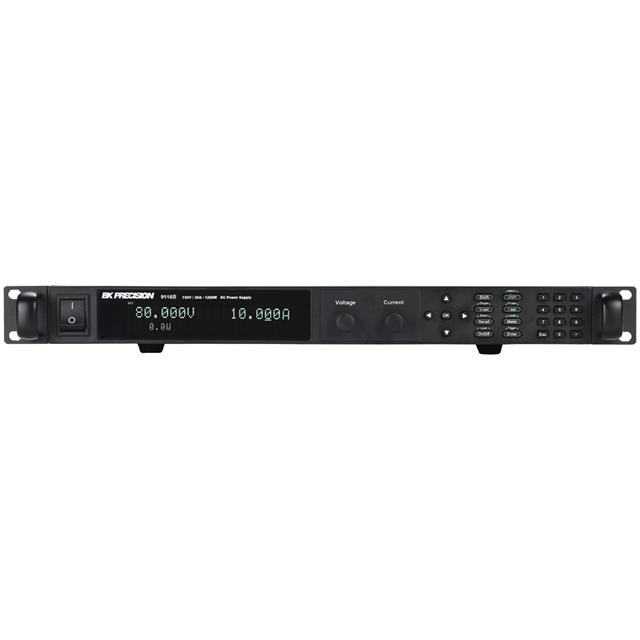

9116B B&K Precision Power Supply Rack Mount (AC to DC) 115VAC, 230VAC 1200WVFD 0 ~ 150VDC 0 ~ 30A Memory, Programmable, RS232, RS485, and USB Interface. 9116B series multi-range programmable DC power supply. This model can replace several supplies on bench or in rack. For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analogue style knobs to quickly make incremental voltage or current changes. Softpanel for remote control, test sequence generation and data logging, LabVIEW™ drivers provided.
0 to 150V max voltage, 0 to 30A max current and 1200W max power (multi-ranging operation)
High programming and readback resolution
Adjustable voltage slope (rise and fall time)
Sequence programming
Save and recall up to 100 instrument settings
Standard USB (USBTMC-compliant), RS232, RS485 interfaces
Analog interface with control and monitoring functions
Remote sense
Overvoltage/overpower/overtemperature protection and key-lock function
Contents
DC power supply, User manual, AC power cord, Rackmount kit, Certificate of calibration.
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: Multi-Range
Input Voltage: 115 VAC, 230 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 150 VDC
Output Current-Channel 1: 0 A to 30 A
Output Power: 1.2 kW
Display Type: VFD
Brand: B&K Precision
Product Type: Bench Top Power Supplies
Series: 9115
Subcategory: Power Supplies
Number of Outputs: 1
Voltage Output: 0 ~ 150VDC
Current Output: 0 ~ 30A
Size / Dimension: 19.024″ L x 16.319″ W x 1.752″ H (483.20mm x 414.50mm x 44.50mm)
Manufacturer: B&K Precision
Datasheet: 9115_Series_datasheet.pdf
