Description

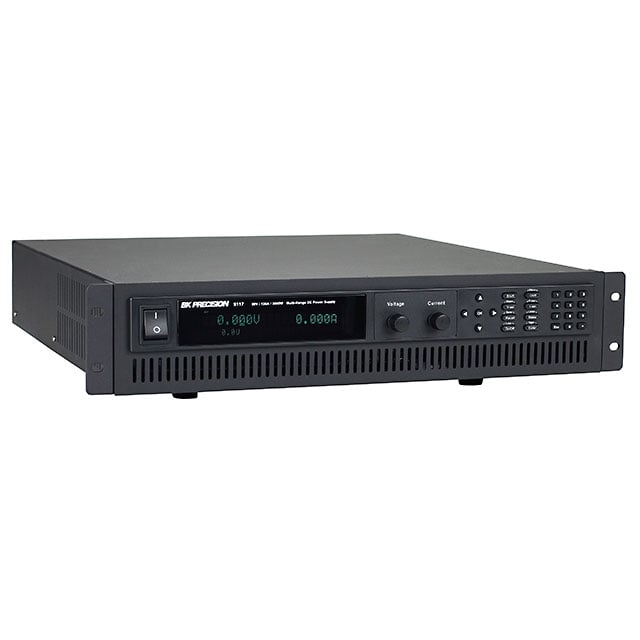

9117 B&K Precision Power Supply Rack Mount (AC to DC) 220VAC 3000WVFD 0 ~ 80VDC 0 ~ 120A GPIB Interface, Memory, Programmable, LAN, RS232, RS485, and USB Interface. Any 9115 Series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits. For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. Systems integrators benefit from the standard USB (USBTMC-compliant), RS-232, GPIB, RS-485, and LAN (9117 only) interfaces supporting SCPI commands. The 9115-AT provides automotive power test waveforms compliant to DIN 40839 and ISO 16750-2 standards that can simulate common test conditions for electrical and electronic devices installed in automobiles. Softpanel for remote control, test sequence generation, and data logging. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators.
Replaced by: Elektro-Automatik EA-PS 9080-120 2U
Multi-ranging operation (output up to max power rating within maximum voltage and current rating)
Compact, high density, 2U rackmount form factor
High programming and readback resolution
Adjustable voltage rise and fall times
Store and recall up to 100 instrument settings
Standard USB (USBTMC-compliant), RS-232, GPIB, RS-485, and LAN interfaces supporting SCPI commands for remote control
Analog interface with control and monitoring functions
Remote sense
Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
Softpanel for remote control, test sequence generation, and data logging. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Input Voltage: 220 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 80 VDC
Output Current-Channel 1: 0 A to 120 A
Output Power: 3 kW
Display Type: VFD
AC Supply Voltage: 220 VAC
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 3.52 in
Length: 20.95 in
Product Type: Bench Top Power Supplies
Series: 9115
Subcategory: Power Supplies
Width: 17.19 in
Unit Weight: 37.479 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 80VDC
Current Output: 0 ~ 120A
Size / Dimension: 20.945″ L x 17.185″ W x 3.516″ H (532.00mm x 436.50mm x 89.30mm)
Manufacturer: B&K Precision
Datasheet: 9115_Series_datasheet.pdf
