Description

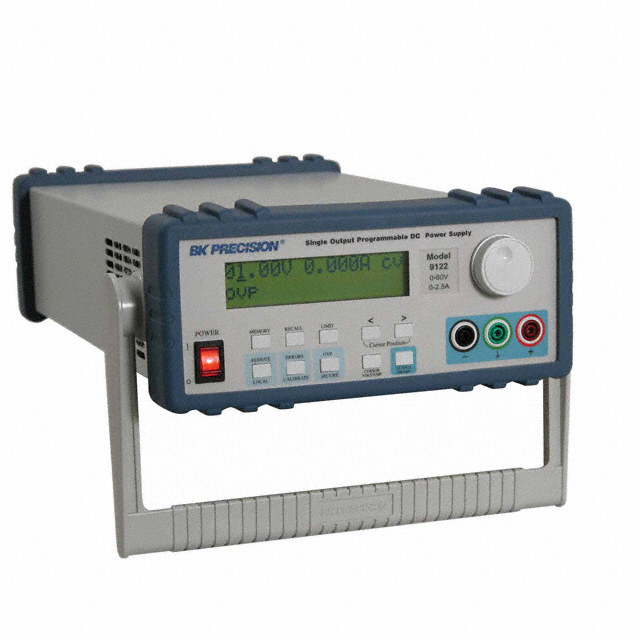

9122 B&K Precision Power Supply Bench (AC to DC) 110VAC, 220VAC 100WDigital 0 ~ 60VDC 0 ~ 2.5A Programmable. The 9120A series are laboratory grade, programmable DC Power Supplies providing great performance and features not found in other supplies in this price category. The power supplies were designed to meet the needs of today’s applications in R&D design verification, production testing or university labs that require clean and reliable power, high resolution/accuracy and fast transient response time.
Excellent display resolution
Fast transient response time (< 150 µs)
SCPI compatible
Communicate via USB Interface, using included USB to TTL serial converter cable
GPIB interface (model 9123A only)
Closed case calibration
Compact size for bench use or rack mountable (2U x 1/2U size)
DVM and Milliohm Meter
Discrete Fault Indicator/Remote Inhibit (DFI/RI). Useful for turning multiple power supplies On/Off simultaneously
Application Software for front panel emulation and simple test sequence generation included
Sheathed banana plug terminals for safety
Specs
Output Voltage: 0 – 60V
Output Current: 0-2.5A
Input Voltage: 115V, 47 Hz to 63 Hz
Dimensions (WxHxD): 8.45 in. x 3.8 in. x 13.9 in.
RS232 interface
Closed case calibration
DVM and Milliohm Meter
Discrete Fault Indicator/Remote Inhibit (DFI/RI)
Sheathed banana plug terminals
Data entry via knob or numerical key pad
Up to 50 parameters can be stored and recalled from internal memory
Number of Outputs: 1
Voltage Output: 0 ~ 60VDC
Current Output: 0 ~ 2.5A
Size / Dimension: 15.000″ L x 8.270″ W x 3.150″ H (381.00mm x 210.06mm x 80.01mm)
Manufacturer: B&K Precision
Datasheet: 9120_datasheet.pdf
