Description

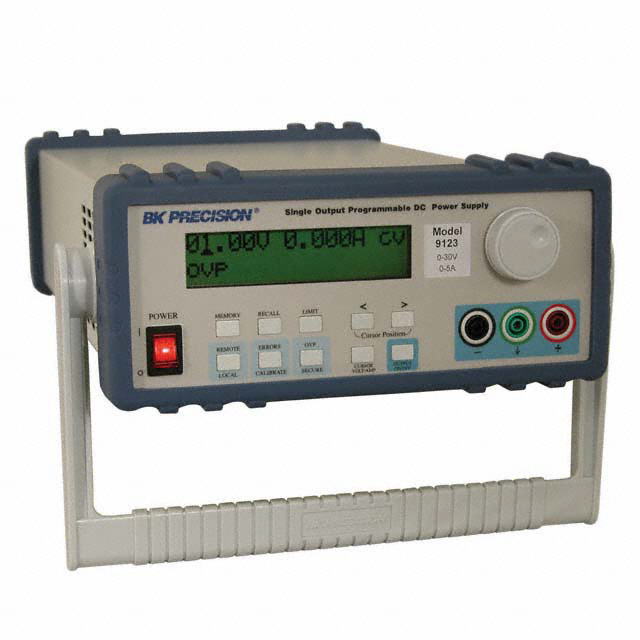

9123 B&K Precision Power Supply Bench (AC to DC) 110VAC, 220VAC 100WDigital 0 ~ 30VDC 0 ~ 5A Programmable. The 9123 is a single output programmable power supply with a built-in RS232 and GPIB interface with SCPI language compatibility. It was designed to meet the needs of today’s applications in R&D design verification, university labs, production testing and other applications that require clean/reliable power and excellent performance. With a meter resolution of 10mV and 1mA, these power supplies are ideal for low power surface mount circuits that require very precise voltage and current settings.
Replaced by: 9123A
10mV & 1mA display resolution
RS 232 interface
GPIB interface model 9123
SCPI compatible
Remote sensing
Front and rear output terminals
Low noise
Excellent regulation
Rock solid temperature stability
Fast transient response time
Closed case calibration
Manufacturer: B&K Precision
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Input Voltage: 115 VAC, 230 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 30 VDC
Output Current-Channel 1: 0 A to 5 A
Output Power: 150 W
Display Type: LCD
Brand: B&K Precision
Cable Type: North American Power Cord Included
Product Type: Bench Top Power Supplies
Subcategory: Power Supplies
Unit Weight: 13.007 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 30VDC
Current Output: 0 ~ 5A
Size / Dimension: 15.000″ L x 8.270″ W x 3.150″ H (381.00mm x 210.06mm x 80.01mm)
Manufacturer: B&K Precision
Datasheet: 9123_datasheet.pdf
