Description

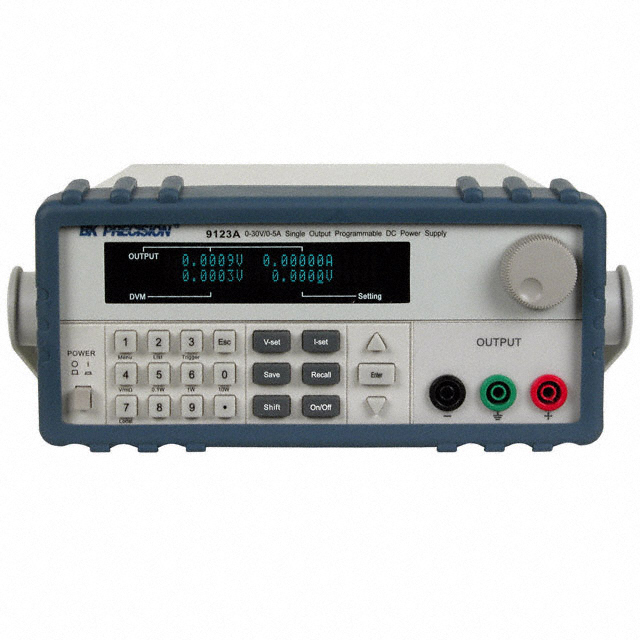

9123A B&K Precision Power Supply Bench (AC to DC) 110VAC, 220VAC 150WVFD 0 ~ 30VDC 0 ~ 5A GPIB Port, Programmable. The BK Precision 9123A is a laboratory grade, programmable DC Power Supply providing great performance and features not found in other supplies in this price category. This power supply is designed to meet the needs of today’s applications in R&D design verification, production testing, or university labs that require clean and reliable power, high resolution/accuracy, and fast transient response time.
Features:
Voltage: 0-30 V
Current: 0-5 A
Excellent display resolution
Fast transient response time (< 150 µs)
SCPI compatible
Communicate via USB Interface, using included USB to TTL serial converter cable
GPIB interface
Closed case calibration
Compact size for bench use or rack mountable (2U x 1/2U size)
DVM and Milliohm Meter
Discrete Fault Indicator/Remote Inhibit (DFI/RI). Useful for turning multiple power supplies On/Off simultaneously
Application Software for front panel emulation and simple test sequence generation included
Sheathed banana plug terminals for safety
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Input Voltage: 115 VAC, 230 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 30 VDC
Output Current-Channel 1: 0 A to 5 A
Output Power: 150 W
Display Type: VFD
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 3.8 in
Length: 1.158 ft
Product Type: Bench Top Power Supplies
Series: 9120A
Subcategory: Power Supplies
Width: 8.45 in
Unit Weight: 19 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 30VDC
Current Output: 0 ~ 5A
Size / Dimension: 13.900″ L x 8.450″ W x 3.470″ H (353.06mm x 214.63mm x 88.14mm)
Manufacturer: B&K Precision
Datasheet: 912xA_manual.pdf
