Description

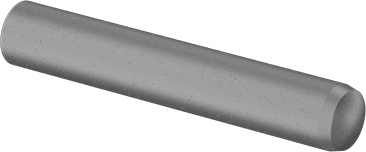

91595A579 Dowel Pin, 8 mm Diameter, 50 mm Long, Steel pins are the strongest dowel pins. Steel pins are precision ground except for 1/32″ diameter pins. Use dowel pins as pivots, hinges, shafts, jigs, and fixtures to locate or hold parts. For a tight fit, your hole should be equal to or slightly smaller than the diameter shown. Breaking strength is measured as double shear, which is the force required to break a pin into three pieces.
Pin Type: Dowel
End Type: Plain
Head Type: Plain
Shaft Type: Plain
End Shape : Rounded x Chamfered, Rounded
System of Measurement : Metric
Material: 52100 Alloy Steel
Length: 50 mm
Diameter: 8 mm
Diameter Tolerance: 0.006 to 0.015 mm
Min. Hardness: Rockwell C52
Breaking Strength: 11,800 lbs.
Tolerance Rating: Standard
Specifications Met: DIN 6325-m6, DIN EN ISO 8734
RoHS: RoHS 3 (2015/863/EU) Compliant
Manufacturer: Electronic Components
MFG Part #: 91595A579
