Description

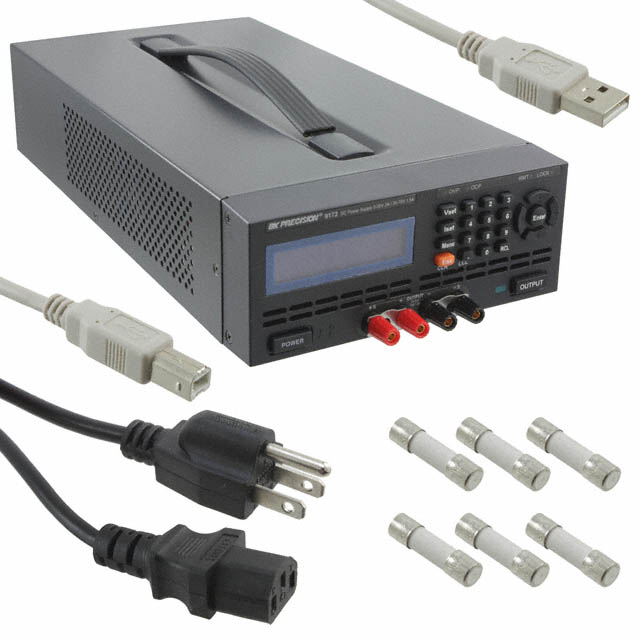

9172 B&K Precision Power Supply Bench (AC to DC) 115VAC, 230VAC 105WLCD 0 ~ 70VDC 0 ~ 3A Memory, Programmable, Tracking, USB Interface. The BK Precision 9172 Dual Range DC Power Supply offers industry leading performance, designed to meet the most demanding applications in R&D, design verification, and production test. It delivers clean, stable and precise output power due to the supplyÆs exceptionally low ripple and noise, low temperature coefficient, excellent regulation and fast transient response time characteristics.
The BK Precision 9172 Dual Range DC Power Supply is well suited for both bench use and ATE applications. For bench use, this power supply offers an intuitive user interface with a full numerical keypad for convenient data entry. R&D and design engineers will appreciate front panel output and remote sense terminals (available on select models). Free application software is provided for remote control without the need for any computer programming. USB and optional GPIB/LAN interfaces combined with a fast transient response time, make this series ideal for ATE applications.
The BK Precision 9172 Dual Range DC Power Supply offers SCPI IEEE488.2 compliant USB (standard), RS232, RS485, GPIB and LAN interfaces, combined with front and rear panel output and remote sense terminals to facilitate test system development and integration. The LAN interface includes a built-in web server that allows users to configure, control, or monitor basic power supply settings.
In addition to a full numerical keypad for convenient data entry, the 9172 also provides unique features not typically found in comparable power sources, such as LED test modes, modular interface card slots, automatic range selection, and an optional 8-bit bidirectional digital I/O interface.
To protect your DUT (device under test), the 9172 provides safety options such as OVP, OCP, and a key-lock feature to prevent accidental change of parameters that might damage your DUT.
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Input Voltage: 115 VAC, 230 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 70 VDC
Output Current-Channel 1: 0 A to 3 A
Output Power: 105 W
Display Type: LED
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 3.4 in
Length: 16.3 in
Product Type: Bench Top Power Supplies
Series: 9170
Subcategory: Power Supplies
Width: 8.3 in
Unit Weight: 17 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 70VDC
Current Output: 0 ~ 3A
Size / Dimension: 16.339″ L x 8.268″ W x 3.425″ H (415.00mm x 210.00mm x 87.00mm)
Manufacturer: B&K Precision
Datasheet: 9170_9180_Series_datasheet.pdf
