Description

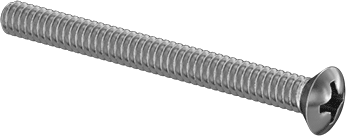

91802A157 Screws have a decorative, domed head that sits above the surface when installed. They’re angled under the head so they can be countersunk in a hole. Made from 18-8 stainless steel, they have good chemical resistance and may be mildly magnetic, Passivated 18-8 Stainless Steel Phillips Oval Head Screws, 6-32 Thread, 1-1/2″ Long, Length is measured from the top of the bevel. RoHS
Thread Size: 6-32
click to learn more about 6-32
Length : 1 1/2″
Threading: Fully Threaded
Oval Head Profile: Standard
Head Diameter : 0.262″
Head Height : 0.128″
Oval Top Height : 0.045″
Countersink Angle: 82
Drive Style: Phillips
click to learn more about Phillips
Drive Size: No. 2
Material: Passivated 18-8 Stainless Steel
Hardness: Rockwell B80
Tensile Strength: 80,000 psi
Screw Size Decimal Equivalent: 0.138″
Thread Type: UNC
Thread Spacing
Thread Fit: Class 2A
Thread Direction: Right Hand
click to learn more about Right Hand
Head Type: Oval
System of Measurement: Inch
Specifications Met: ASME B18.6.3
RoHS: RoHS 3 (2015/863/EU) Compliant
Manufacturer: Electronic Components
MFG Part #: 91802A157
