Description

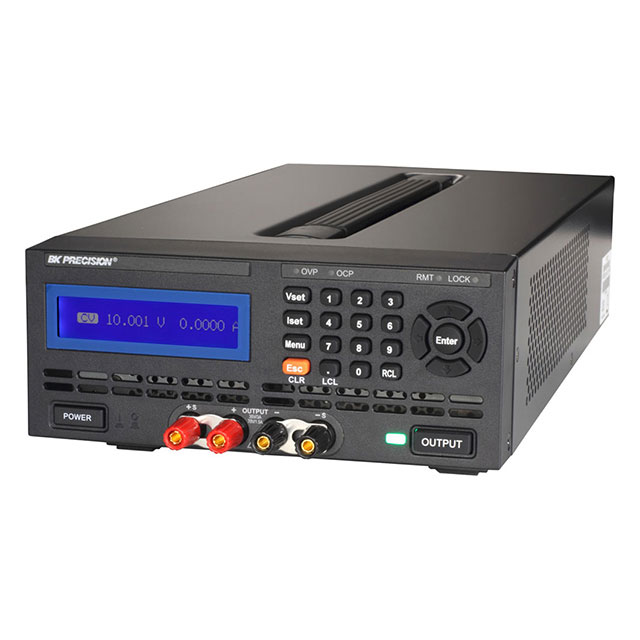

9181B B&K Precision Power Supply Bench (AC to DC) 115VAC, 230VAC 144WLCD 0 ~ 36VDC 0 ~ 8A Memory, Programmable, Tracking, USB Interface. The 9181B from B&K Precision is a 9180B series programmable DC power supply. It offers industry leading performance and designed to meet most demanding applications in R&D, design verification and production test. It features low ripple and noise, low temperature coefficient, excellent regulation and fast transient response time characteristics. It is well suited for both bench use and ATE applications. For bench use, it offers an intuitive user interface with a full numerical keypad for convenient data entry. R&D and design engineers will appreciate front panel output and remote sense terminals. Free application software is provided for remote control without need for any computer programming. USB and optional GPIB/LAN interfaces combined with a fast transient response and command processing time, make it ideal for ATE applications. It has versatile LED test modes, modular interface card slots, automatic range selection and an optional 8bit bidirectional digital I/O interface.
Output rating of 0 to 18V, 0 to 8A / 0 to 36V, 0 to 4A
AC input 115/230VAC ±10%, maximum output power is 144W
Programmable voltage and current slew rates
Front and rear panel output terminals for convenient wiring
List mode for executing up to 10 stored test sequences with a maximum of 150 steps in total
Store and recall up to 10 power settings
Exceptionally fast command processing time, less than 10 ms, greatly reduces overall test time
Overvoltage (OVP) and overcurrent (OCP) protection, including key-lock function
Dimension is 8.3″ x 3.4″ x 16.3″ (210mm x 87mm x 415mm), 2U rack unit, 7.7Kg weight
EN61010-1 2001, EU low voltage directive 2006/95/EC safety approval, 0 to 40°C operating temperature
Specs
Low range: 0 to 18 V, 0 to 8 A High range: 0 to 36 V, 0 to 4 A
144 W max., Single output
Exceptionally low ripple and noise
Front and rear panel output
List mode for executing up to 10 stored test sequences with a maximum of 150 steps in total
Overvoltage/overcurrent/overtemperature protection (OVP/OCP/OTP) and key-lock function
Fast transient response time of < 50 us for most models
Fast command processing time < 10 ms
Programmable voltage and current slew rates
Standard USB interface
4 optional types of modular interface cards add LAN and GPIB, Digital I/O and Analog Control, RS485, or RS232 functionality
LabVIEW (TM) drivers available
Three-year warranty
Number of Outputs: 1
Voltage Output: 0 ~ 36VDC
Current Output: 0 ~ 8A
Size / Dimension: 16.339" L x 8.268" W x 3.425" H (415.00mm x 210.00mm x 87.00mm)
Manufacturer: B&K Precision
Datasheet: 9170B_9180B_Series_datasheet.pdf
