Description

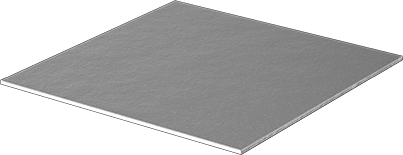

9195K18 Highly Corrosion-Resistant 316/316L Stainless Steel Sheet, 36″ x 48″, 0.188″ Thick RoHS
Material 316/316L Stainless Steel
Cross Section Shape Rectangle
Construction Solid
Appearance Plain
Thickness 0.188″
Thickness Tolerance -0.05″ to 0.05″
Tolerance Rating Standard
Width 36″
Width Tolerance -1/8″ to 1/8″
Length 48″
Length Tolerance -1/8″ to 1/8″
Yield Strength 30,000 psi
Fabrication Hot Rolled
Temper Rating Softened (Annealed)
Hardness Rockwell B95
Hardness Rating Medium
Heat Treatable No
Min. Temperature Not Rated
Maximum Temperature 1500F
Specifications Met ASTM A240
Flatness Tolerance Not Rated
Density 0.29 lbs./cu. in.
Surface Resistivity 449 ohm-cir. mil/ft.
Melting Point Temperature 2500F
Modulus of Elasticity 28 ksi 103
Thermal Conductivity 110 Btu/hr. in./sq. ft./F @ 212F
Elongation 39%
Manufacturer Part Number: 9195K18
