Description

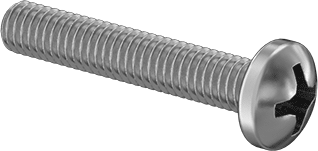

92000A163 Stainless Steel Pan Head Phillips Screws Made from 18-8 stainless steel, these pan head screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head M3.5 x 0.6mm Thread 20mm Long.Passivated stainless steel screws provide added protection against oxidation and corrosion.
Thread Size
: M3.5
Thread Pitch: 0.6 mm
Length: 20 mm
Threading: Fully Threaded
Head Diameter: 7.00 mm
Head Height: 2.80 mm
Drive Style: Phillips
click to learn more about Phillips
Drive Size: No. 2
Material: Passivated 18-8 Stainless Steel
Hardness: Rockwell B70
Tensile Strength: 70,000 psi
Thread Type: Metric
Thread Spacing
: Coarse
click to learn more about Coarse
Thread Fit: Class 6g
Thread Direction
click to learn more about
: Right Hand
Head Type: Rounded
Rounded Head Style: Pan
Rounded Head Profile: Standard
System of Measurement: Metric
Specifications Met: DIN 7985
RoHS: RoHS 3 (2015/863/EU) Compliant
Manufacturer: Electronic Components
MFG Part #: 92000A163
