Description

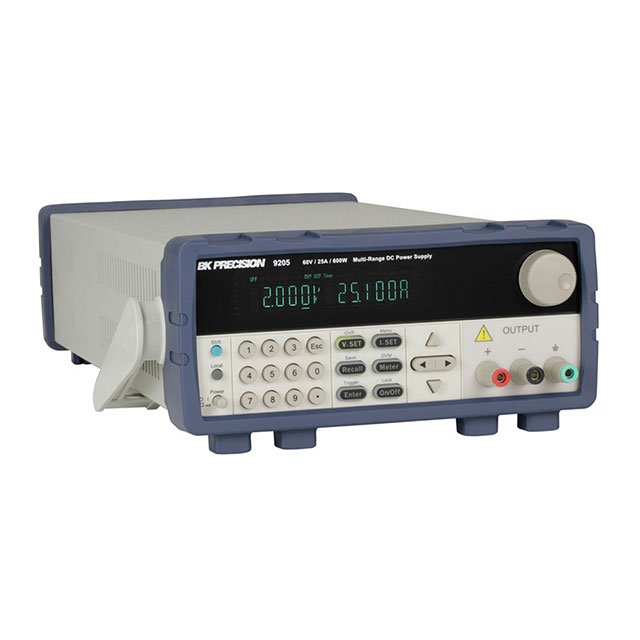

9205 B&K Precision Power Supply Bench (AC to DC) 110VAC, 220VAC 600WVFD 0 ~ 60VDC 0 ~ 25A Memory, Programmable, GPIB, RS232, and USB Interface. Any 9200B series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.
For benchtop applications, these power supplies provide a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. System integrators benefit from the standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands.
Specs
Output Voltage: 0-60V
Output Current: 0-25A
Max Power: 600W
Input Voltage: 110VAC, 47 Hz – 63 Hz
Dimensions (WxHxD): 8.45 in. x 3.47 in. x 17.52 in.
Multi-ranging operation
Programming and readback resolution of 1 mV / 0.1 mA
Store and recall up to 72 instrument settings
Numeric keys and rotary knob interface
Output timer function
List mode programming
Standard USB (USBTMC-compliant), RS232, and GPIB interfaces supporting SCPI commands for remote control
Remote sense
Built-in digital voltmeter
Thermostatically controlled fan
Number of Outputs: 1
Voltage Output: 0 ~ 60VDC
Current Output: 0 ~ 25A
Size / Dimension: 17.520″ L x 8.450″ W x 3.470″ H (445.01mm x 214.63mm x 88.14mm)
Manufacturer: B&K Precision
Datasheet: 9200_Series_datasheet.pdf
