Description

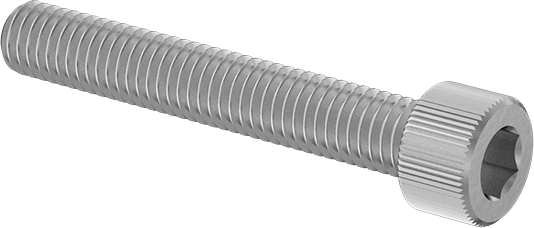

92196A705 18-8 Stainless Steel Socket Head Screw, Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head. Fine threads are closely spaced to prevent loosening from vibration. They are not compatible with coarse threads, 10-32 Thread Size, 1-1/4″ Long, Fully Threaded
Head Type: Socket
Socket Head Profile: Standard
Drive Style: Hex
click to learn more about Hex
System of Measurement: Inch
Thread Direction: Right Hand
click to learn more about Right Hand
Thread Size: 10-32
click to learn more about 10-32
Screw Size Decimal Equivalent: 0.19″
Thread Type: UNF
Thread Fit: Class 3A
Length : 1 1/4″
Threading: Fully Threaded
Thread Spacing
click to learn more about
: Fine
click to learn more about Fine
Head:
Diameter : 5/16″
Height : 0.19″
Drive Size: 5/32″
Tensile Strength: 70,000 psi
Hardness: Rockwell B70
Material: 18-8 Stainless Steel
RoHS: RoHS 3 (2015/863/EU) Compliant
Manufacturer: Electronic Components
MFG Part #: 92196A705
