Description

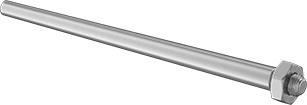

92284A388 18-8 Stainless Steel Threaded Taper Pin with Hex Nut, 0.407″ Large End Diameter, 6″ Long
Pin Type:Taper
End Type:Plain
Head Type:Threaded
Shaft Type:Tapered
End Shape:Rounded
System of Measurement:Inch
Material:18-8 Stainless Steel
Pin Number:7
Large End Diameter:0.407″
Large End Diameter Tolerance:-0.0007″ to 0.0013″
Length:6″
Small End Diameter:0.282″
Rate of Taper:1/4″ per 12″
Thread Length:1/2″
Thread Size:3/8″-24
Min. Hardness:Rockwell B90
Breaking Strength:54,000 lbs./sq. in.
Passivation:Not Passivated
Includes:Hex Nut
RoHS:Compliant
Manufacturer Part Number: 92284A388
