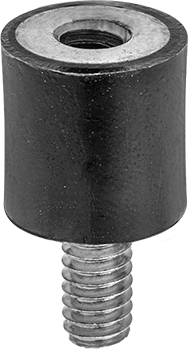

9232K11 Vibration-Damping Sandwich Mount Use these rubber sandwich mounts to minimize vibration between surfaces inside machinery and equipment, such as in circuit boards, small fans, compressors, and pumps. They’re for use in compression and shear load applications.
Mount Type: Threaded Stud and Threaded Insert
Thread Size: M4
click to learn more about M4
Thread Type: Metric
Capacity per Mount: 7 lbs.
Deflection @ Capacity: 0.05″
Shear Capacity per Mount: 0.75 lbs.
Deflection @ Shear Capacity: 0.04″
Diameter : 3/8″
Height : 1/2″
Thread Length : 1/2″
Thread Depth : 1/8″
Hardness: Durometer 50A
Hardness Rating: Medium
System of Measurement: Metric
Shape: Round
Material: Black Natural Rubber
Stud Material: Zinc-Plated Steel
Insert Material: Steel
Temperature Range: -10 to 150 F
Manufacturer: Electronic Components
MFG Part #: 9232K11
