Description

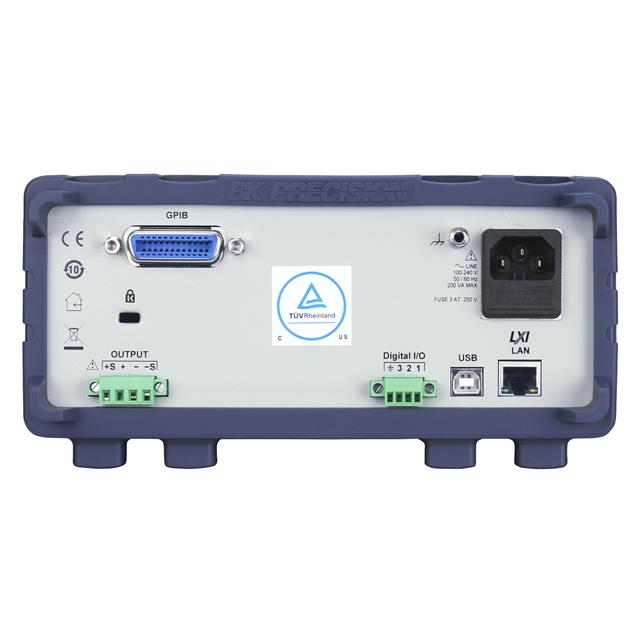

B&K Precision 9240-GPIB DC Power Supply, Single Output, 32V/8A, 120W, USB/LAN/GPIB, 9240 Series, LAN Interfaces, USB Interface. The 9240 Series sets a new standard for general purpose benchtop power supplies by including many of the features and capabilities found in high-performance instruments. The multi-range operation provides up to 200 W of clean output power in any Volt/Amp combination within rated voltage and current limits.
9240-GPIB is a 9240 series multi-range DC power supply. It combines an easy-to-use interface with advanced list programming features, battery charge mode, and data logging to serve a wide range of applications including production test, R&D, electronic service, and education. It offers system integrators with LXI compliant LAN and USB (USBTMC-compliant) interfaces standard for remote control and programming with a GPIB model option. The provided LabVIEW™, IVI-C, and IVI.NET drivers further simplify system development and integration. In addition to OVP, OCP, and OTP protections, these power supplies support remote inhibit and voltage fault features to protect both the power supply and device under test (DUT).
Voltage range from 0 to 32V, current range from 0 to 8A
120W of multi-range power in a compact 2U half-rack form factor
Clean output power with less than 1 mVrms of noise
Thermostatically-controlled fan for quiet operation
Adjustable voltage and current slew rate
Built-in web server for control of basic power supply settings
LED test mode for protecting components from inrush currents
Oscilloscope-like display mode to graphically monitor voltage and current readings
Digital I/O terminal offers external triggering, voltage fault and remote inhibit capabilities
NISPOM sanitization to securely reset to factory settings
Contents
Multi-range DC power supply, Power cord, Certificate of calibration
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: Multi-Range
Input Voltage: 100 VAC, 240 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 32 VDC
Output Current-Channel 1: 8 A
Output Power: 120 W
Display Type: Digital
Brand: B&K Precision
Height: 3.5 in
Length: 8.4 in
Maximum Operating Temperature: + 40 C
Minimum Operating Temperature: 0 C
Product Type: Bench Top Power Supplies
Series: 9240
Subcategory: Power Supplies
Width: 13 in
Unit Weight: 11 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 32V
Current Output: 0 ~ 8A
Size / Dimension: 13.000″ L x 8.400″ W x 3.500″ H (330.20mm x 213.36mm x 88.90mm)
Manufacturer: B&K Precision
Datasheet: 9240_datasheet.pdf
