Description

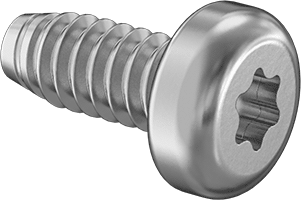

92750A104 Strip-Resistant Screws Also known as Fastite screws, these offer more thread engagement in 0.028″ to 0.063″ thick sheets to prevent overtightening and damaging threads. They’re made from steel and have a zinc plating to resist corrosion in wet environments. Length is measured from under the head for Sheet Metal Zinc-Plated Steel 4-40 Thread 1/4″ Long
Material: Zinc-Plated Steel
Thread Size 4-40
Screw Size: No. 4
Screw Size Decimal Equivalent: 0.112″
Length : 1/4″
Head:
Diameter : 0.219″
Height : 0.08″
Drive Size: T10
Drive Style: Torx
click to learn more about Torx
Drill Bit Size: No. 44
Drill Bit Decimal Size Equivalent: 0.0860″
Thread Direction Right Hand
click to learn more about Right Hand
Threading: Fully Threaded
Thread Spacing Coarse
click to learn more about Coarse
Thread Type: UNC
Tapping Method: Thread Forming
Tapping Screw Type: CA
Head Type: Rounded
Rounded Head Profile: Standard
Rounded Head Style: Pan
Tip Type: Blunt
Shank Cross Section: Tri-Lobe
System of Measurement: Inch
For Use In: Sheet Metal
RoHS: RoHS 3 (2015/863/EU) Compliant
Manufacturer: Electronic Components
MFG Part #: 92750A104
