Description

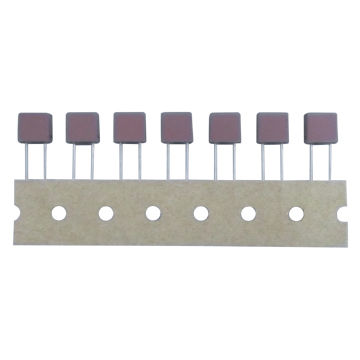

9321250201 Betterfuse Time-Lag Sub-Miniature Fuse 2.5A 300V AC Radial RoHS
932 Series is slow low breaking ability fuse, apply to the over-current protection circuits which the ac voltage is less than 300 v, and the breaking capacity is less than 100 A .
932 series fuse is mainly used in LED driver circuit, power adapter, battery chargers, industrial control equipment, etc.
The 932 series provides protection for printed circuit boards used in a large variety of applications that need fuses with time-delay, low breaking capacity. The sub-miniature device is constructed of a plastic cap and base with a tin plated copper lead wire. It offers excellent mounting characteristics and is 100% tested for cold resistance.
Detailed Features
• Subminiature fuse with time-lag, low breaking capacity
• Small, rectangular and leaded design minimizes board space and eliminates the need for additional mounting components
• Plastic cap / brown thermoplastic fuse body.
• 0.6mm lead wires made of tin plated copper.
• Protection against harmful over-currents in primary and secondary applications.
• Lead-free, Halogen-free, RoHS compliant
• Designed according to IEC 60127
Manufacturer:Betterfuse
Datasheet:932-datasheet.pdf
