Description

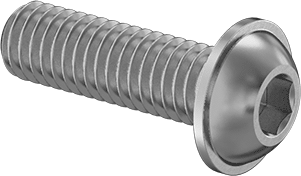

97654A676 Stainless Steel Flanged Button Head Screw, Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. They have a flange that distributes pressure across a wide surface, eliminating the need for a separate washer. All are passivated for added protection against oxidation and corrosion. Head height includes the flange. Length is measured from under the flange M3 x 0.5 mm Thread Size, 10 mm Long
Thread Size M3
Thread Pitch: 0.5 mm
Length: 10 mm
Threading: Fully Threaded
Flange Diameter: 6.90 mm
Head Height: 1.65 mm
Drive:
Style: Hex
click to learn more about Hex
Size: 2 mm
Material: 18-8 Stainless Steel
Finish: Passivated
Hardness: Not Rated
Tensile Strength: 70,000 psi
Thread Type: Metric
Thread Fit: Class 6g
Thread Direction: Right Hand
click to learn more about Right Hand
Head Type: Rounded
Rounded Head Style: Button
Rounded Head Profile: Wide
Screw Features: Flanged
System of Measurement: Metric
Specifications Met: ISO 7380
RoHS: RoHS 3 (2015/863/EU) Compliant
